MATELPHOTO

Performance characteristics
Abrasion Resistance
No pronounced image loss, degradation or reduced readability after 7000 cycles of an abrading wheel.
Acid Corrosion
No deterioration or image degradation after 24 hours in 3% nitric acid.
Heat Resistance
No legibility loss or degradation when subjected to 1000oF.
Salt Spray Corrosion
No deleterious effect after a 720-hour salt spray (fog) test. “Very good” corrosion resistance after 113 days seawater exposure.
Accelerated Light & Water Resistance
No pronounced deterioration of legibility after 400-hours carbon arc weatherometer exposure.
Accelerated Oxygen Aging
No discoloration or fading after 96hour/300 psi/70oC oxygen bomb aging.
Stain Resistance
No Black fading when plates are exposed to tincture of iodine.2
Cleaning Resistance
No deleterious effects when tested with alkaline cleaners (MIL-C-87937 or equivalent) for aircraft surfaces.
Low Temperature Resistance
No deleterious effect or images fade after 1 hour at -50oF. No impairment of legibility upon exposure at -67o F.

Organic Solvent Resistance

No softening, stainng, or noticeable fade after 24-hour exposure to:

JP-4 fuel	Acetone
Gasoline	Toluol
Mineral spirits	Heptane
Turpentine	Trichloroethylene
Turbine & jet fuel	MIL-H-5606 hydraulic fluid
Kerosene	MIL-L-7808 jet engine oil
Xylol	Acetone

Fungus Resistance
Visual reading of “0” per ASTM-G21.
Thermal Shock
No deterioration after 3 cycles between -65oC and 125oC.
Moisture Resistance
No deterioration after 10 humidity cycles per MIL-STD-202, Method 106.

Reference Documents
1. ASTM B209-01 Standard Specification for Aluminum and Aluminum Alloy Sheet and Plate
2. GG-P-455b Federal Specification-Plates and Foils, Photographic(Photosensitive Anodized Aluminum)
3. MIL-A-8625E Military Specification-Anodic Coatings, for Aluminum and Aluminum Alloys.
4. MIL-DTL-15024F Detail Specification- Plates, Tags, and Bands for Identification of Equipment, General Specifications.
5. A-A-50271 Commercial Item Description-Plate Identification.
6. 62-GP-10 Standard for: Photosensitive Anodized Aluminum Markings: Plates and Foil, Photographic-Canadian General Standards Board.
7. DMS 1674E-Labels, Aluminum, Etched, Anodized, and Dyed-McDonnell Douglas Corporation.
8. Reference Document 23.1011.00.03.91-Corrosion test of Anodized Al-Nameplates-Metalphoto-Norwegian Marine Technology Research Institute. Reference Document SSP 50007-Space Station Inventory Management System Label Specification-Johnson Space
• Excellent weather resistance • Excellent chemical resistance
• Excellent abrasion resistance • Excellent temperature resistance

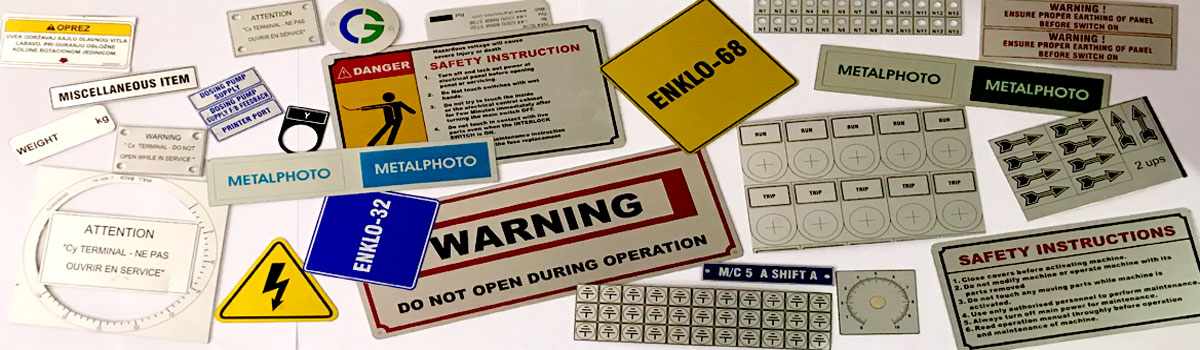

METALPHOTO® Labels : TYPICAL APPLICATION IN YOUR PLANT CAN BE

Manufacturing Department
• Manufacturers' Plates
• Sr. No. / Model No. Plates
• Year of Mfg. Labels
• Company Name Plate / Logos
• Product Specification labels
• Connection Diagrams
• Circuit Diagrams
• Schematic Diagrams
• Operating Ranges
• Operating Instructions
• Direction Arrows
• Caution / Precaution
• Dangers
• Bar Code Labels

Q.A. Department (ISO Labels)
• Equip. / Instru. Name Plates
• Precision - Dials, Scales & Gauges
• Instru. Calibration Labels
• Instru. Specification Chart
• Instru. Handling Instruction
• Precaution
• Identification Tags such as Tested,
• OK, Under Inspection, Rejected etc.
• Replacement / Maintenance /
• Cleaning Schedules for Safety
• Valves, Chemical, Oils, U.V. tubes,
• Tanks etc.

Maintenance & Engg. Dept.
• Motor / Machine Rating Plates
• Operating Instructions
• Machine Front Facia Plate
• Hydraulic / Circuit Diagram Plates for
• Machines.
• Electrical Panel Labels
• Cable Tags
• Danger Plates
• Updatable maintenance Schedules Tags
• for Equipment, Filters, Valves
• Replacement / Servicing Schedules for
• Switchgears, Machines, Safety Valves etc.

Production Department
• Production Schedule Chart
• Process Flow Chart
• Testing Ref. Data Chart
• Operator Instructions
• Indication & Direction Arrows
• Machine Code Name Plates
• Entry Restricted Zone Labels
• Tags for material Handling Trays.
• Front Fascia / Operator Panel

Packing & Store Department
• Packing Instruction
• Bar Code Labels
• Material Identifications
• Store Rack Labels
• Dies Labels
• Hazardous Chemicals
• Identification Tags
• Finished / Tested / Rejected Goods
• Instruction Labels

Personnel & Safety Dept.
• Safety Instruction like -
• No Smoking Zone
• Chemical Hazardouss
• Use Hand Gloves
• Factory Emergency Exit Plan
• Fire Alarm
• Assets Labels
• Indication Name Plates
• Identity Cards, Key Tags
• Momentous

Inplant Users
MICO Ltd.
Rishabh Instruments (I) Pvt Ltd.
Perfect Circle Vector Ltd.
Mahindra Sona Ltd.
Mahindra & Mahindra Ltd.
CEAT Ltd.
ABB Ltd.
VIP Industries Ltd. Nashik & Sinnar
Indian Tools Ltd. Nashik & Aurangabad.
Tata Yazaki Autocomp Ltd.
Bajaj Auto Ltd., Aurangabad
Jindal Saw Ltd. Sinnar
GlaxoSmithkline Pharma. Ltd.
Cable Corporation of India
Graphite India Ltd.

Manufacturers
Kirloskar Oil Engine Ltd.
IBP Co. Ltd.
Bajaj Auto Ltd., Aurangabad
Crompton Greaves Ltd.
Nashik, Ambad & A' Nagar Plant
ABB Ltd.
Kent Introl India Ltd.
Monk Automation Pvt. Ltd.
Motwane Mfgr. Co. Pvt. Ltd.
Teknocrate Control System Pvt. Ltd.
Fox Control Pvt. Ltd.
Precise Vacuum Pumps Pvt. Ltd.
Technoshell
Parason Machines, A' bad.
Gansons Ltd.

Pharma / Chemical Inds.
GlaxoSmithkline Pharma. Ltd.
Liva Pharma Ltd.
Encore Pharma Abad
Loard India Ltd, Nashik
orchid Pharma A'bad
Anish Pharma Pvt. Ltd.
Sun Pharma Ltd.
Cipla Ltd.
Ranbaxy Lab
Dr. Reddy's Lab
Blue Cross Laboratories
FDC Ltd., Aurangabad
Baxter Ltd. Abad
UCB India Ltd.
J. K. Ansell Ltd., Aurangabad.
